HMC980LP4E - ACTIVE BIAS CONTROLLER

Datasheet Summary

Description

HMC980LP4E is an active bias controller that can automatically adjust the gate voltage of an external amplifier to achieve constant bias current.

Features

Automatic Gate voltage adjustment (No Calibration required) Supply Voltage (5V to 16.5V) Bias both Enhancement or Depletion type devices.
Adjustable Drain Current up to 1.6 A Sink or source gate current Internal negative voltage generation.
Can be disabled to use external negative rail Fast Enable/Disable Trigger-out Output for Daisy Chain Power-Up and Power-Down Sequencing Over/Under Curr.

Datasheet Details

Part number	HMC980LP4E
Manufacturer	Hittite Microwave Corporation
File Size	1.16 MB
Description	ACTIVE BIAS CONTROLLER
Datasheet	HMC980LP4E Datasheet
Additional preview pages of the HMC980LP4E datasheet.

📁 Similar Datasheet

HMC980LP4E - Active Bias Controller (Analog Devices)

HMC981LP3E - ACTIVE BIAS CONTROLLER (Analog Devices)

HMC983LP5E - FRACTIONAL-N DIVIDER AND FREQUENCY SWEEPER (Analog Devices)

HMC984LP4E - DIGITAL PHASE-FREQUeNCY DETECTOR (Analog Devices)

HMC985A - GaAs MMIC VOLTAGE - VARIABLE ATTENUATOR (Analog Devices)

HMC985ALP4KE - GaAs MMIC VOLTAGE - VARIABLE ATTENUATOR (Analog Devices)

HMC985LP4KE - GaAs MMIC VOLTAGE - VARIABLE ATTENUATOR (Analog Devices)

HMC986 - GaAs MMIC REFLECTIVE SPDT SWITCH (Analog Devices)

HMC986A - GaAs MMIC REFLECTIVE SPDT SWITCH (Analog Devices)

HMC987LP5E - LOW NOISE 1:9 FANOUT BUFFER (Analog Devices)

Full PDF Text Transcription

Click to expand full text

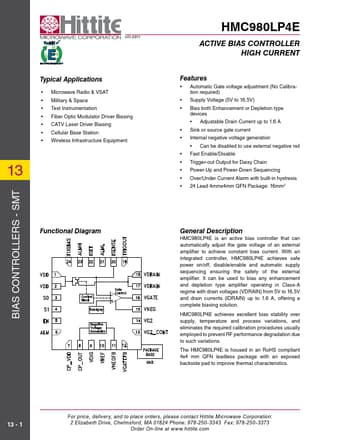

www.DataSheet.co.kr HMC980LP4E v01.0911 ACTIVE BIAS CONTROLLER HIGH CURRENT Features • Automatic Gate voltage adjustment (No Calibration required) Supply Voltage (5V to 16.5V) Bias both Enhancement or Depletion type devices • • • • Adjustable Drain Current up to 1.
