HI-8570 - (HI-8570 / HI-8571) ARINC 429 LINE DRIVER

HI-8570 Description

HI-8570, HI-8571 August 2006 +/- 5V Supply, ARINC 429 LINE DRIVER PIN CONFIGURATION SLP1.5 1 TX0IN 2 TX1IN 3 GND 4 .
The HI-8570 and HI-8571 are CMOS integrated circuits designed to directly drive the ARINC 429 bus in an 8-pin package.

HI-8570 Applications

* where external series resistance is required, typically for lightning protection devices. Both the HI-8570 and HI-8571 are built using high-speed CMOS technology. Care should be taken to ensure the V+ and V- supplies are locally decoupled and that the input waveforms are free from negative voltage s

📥 Download Datasheet

Preview of HI-8570 PDF

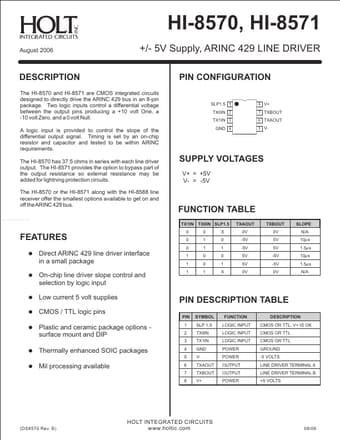

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HI-8570
Manufacturer
Holt Integrated Circuits
File Size
93.27 KB
Datasheet
HI-8570_HoltIntegratedCircuits.pdf
Description
(HI-8570 / HI-8571) ARINC 429 LINE DRIVER
