HI-8573 - (HI-8573 - HI-8575) Quad CMOS Op Amp / Comparator

HI-8573 Description

HI-8573, HI-8574, HI-8575 February 2002 Quad CMOS Op Amp / Comparator .
The HI-8573, HI-8574 and HI-8575 devices are designed using low power CMOS technology.

HI-8573 Applications

* ! Oscillators ! Function generators ! Active filters ! Logic level converters ! Voltage reference ! Zero crossing detectors ! Instrumentation PIN CONFIGURATION Output A 1 Input A - 2 Input A + 3 VCC 4 Input B + 5 Input B - 6 Output B 7 ISET A, B 8 16 Output D 15 Input D 14 Input D + 13 VEE 12 Inpu

📥 Download Datasheet

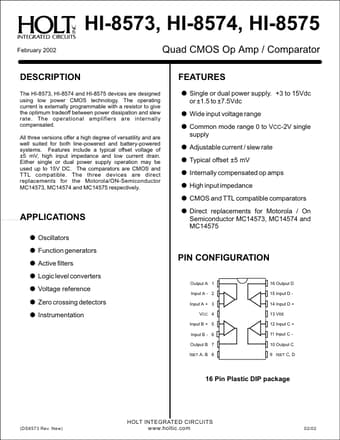

Preview of HI-8573 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HI-8573
Manufacturer
Holt Integrated Circuits
File Size
88.49 KB
Datasheet
HI-8573_HoltIntegratedCircuits.pdf
Description
(HI-8573 - HI-8575) Quad CMOS Op Amp / Comparator
