HI-8583, HI-8582, ARINC 429 SYSTEM ON A CHIP

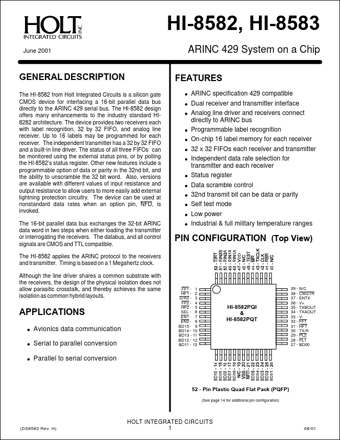

HI-8582, HI-8583 June 2001 ARINC 429 System on a Chip .
The HI-8582 from Holt Integrated Circuits is a silicon gate CMOS device for interfacing a 16-bit parallel data bus directly to the ARINC 429 serial bu.

datasheet Preview Page 1 from Datasheet4u.com

HI-8582_HoltIntegratedCircuits.pdf

HI-8583 Datasheet Preview — This datasheet PDF includes multiple part numbers: HI-8583, HI-8582. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HI-8583, HI-8582

Manufacturer:

Holt Integrated Circuits

File Size:

419.69 KB

Description:

ARINC 429 SYSTEM ON A CHIP

Note:

This datasheet PDF includes multiple part numbers: HI-8583, HI-8582.
Please refer to the document for exact specifications by model.

Features

* ! ARINC specification 429 compatible ! Dual receiver and transmitter interface ! Analog line driver and receivers connect directly to ARINC bus ! Programmable label recognition ! On-chip 16 label memory for each receiver ! 32 x 32 FIFOs each receiver and transmitter ! Independent data rate selection

Applications

* ! Avionics data communication ! Serial to parallel conversion ! Parallel to serial conversion FF1 - 1 HF1 - 2 D/R2 - 3 FF2 - 4 HF2 - 5 SEL - 6 EN1 - 7 EN2 - 8 BD15 - 9 BD14 - 10 BD13 - 11 BD12 - 12 BD11 - 13 HI-8582PQI & HI-8582PQT 39 - N/C 38 - CWSTR 37 - ENTX 36 - V+ 35 - TXBOUT 34 - TXAOUT 33
