HI-8584, Enhanced ARINC 429 Serial Transmitter and Dual Receiver

HI-8584 September 2006 Enhanced ARINC 429 Serial Transmitter and Dual Receiver .
The HI-8584 from Holt Integrated Circuits is a silicon gate CMOS device for interfacing a 16-bit parallel data bus to the ARINC 429 serial bus.

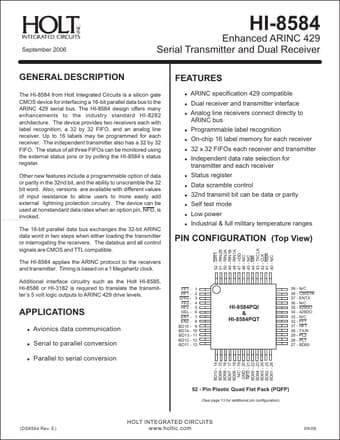

datasheet Preview Page 1 from Datasheet4u.com

HI-8584_HoltIntegratedCircuits.pdf

HI-8584 Datasheet Preview — Preview of HI-8584 PDF

Datasheet Details

Part number:

HI-8584

Manufacturer:

Holt Integrated Circuits

File Size:

146.58 KB

Description:

Enhanced ARINC 429 Serial Transmitter and Dual Receiver

Features

* ! ARINC specification 429 compatible ! Dual receiver and transmitter interface ! Analog line receivers connect directly to ARINC bus ! Programmable label recognition ! On-chip 16 label memory for each receiver ! 32 x 32 FIFOs each receiver and transmitter ! Independent data rate selection for transm

Applications

* ! Avionics data communication ! Serial to parallel conversion ! Parallel to serial conversion FF1 - 1 HF1 - 2 D/R2 - 3 FF2 - 4 HF2 - 5 SEL - 6 EN1 - 7 EN2 - 8 BD15 - 9 BD14 - 10 BD13 - 11 BD12 - 12 BD11 - 13 HI-8584PQI & HI-8584PQT 39 - N/C 38 - CWSTR 37 - ENTX 36 - N/C 35 - 429DO 34 - 429DO 33 -
