HI-8588

ARINC 429 LINE RECEIVER

HI-8588 Features

* ! ! ! ! ! Direct ARINC 429 line receiver interface in a small outline package Receiver input hystersis at least 2 volts Test inputs that bypass analog input and can power down and tri-state outputs Plastic and ceramic package options surface mount and DIP Mil processing available PIN DESCRIPTION

HI-8588 General Description

The HI-8588 is an ARINC 429 bus interface receiver and is available in a SO 8 pin package. The technology is analog/digital CMOS. The circuitry requires only a 5 volt supply. The ARINC bus can be connected directly to the chip. The typical 10 volt differential signal is translated and input to a win.

HI-8588 Datasheet (167.80 KB)

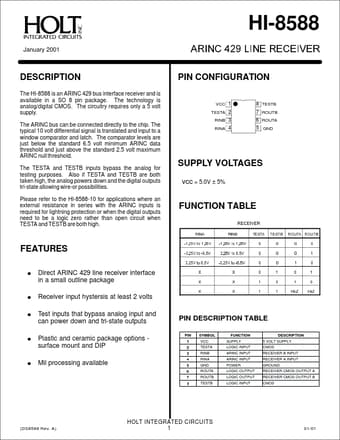

Preview of HI-8588 PDF

Datasheet Details

Part number:

HI-8588

Manufacturer:

Holt Integrated Circuits

File Size:

167.80 KB

Description:

Arinc 429 line receiver.
