HI-8585, (HI-8585 / HI-8586) ARINC 429 LIN DRIVER

HI-8585, HI-8586 January 2001 ARINC 429 LINE DRIVER PIN CONFIGURATION SLP1.5 1 TX0IN 2 TX1IN 3 GND 4 .
The HI-8585 and HI-8586 are CMOS integrated circuits designed to directly drive the ARINC 429 bus in an 8 pin package.

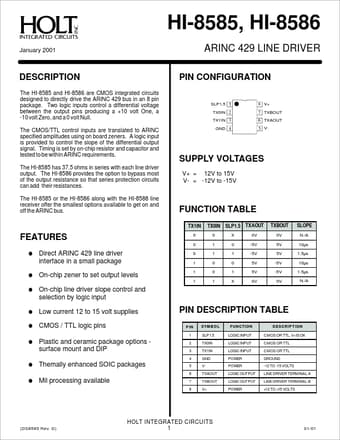

datasheet Preview Page 1 from Datasheet4u.com

HI-8585_HoltIntegratedCircuits.pdf

HI-8585 Datasheet Preview — Preview of HI-8585 PDF

Datasheet Details

Part number:

HI-8585

Manufacturer:

Holt Integrated Circuits

File Size:

132.92 KB

Description:

(HI-8585 / HI-8586) ARINC 429 LIN DRIVER

Features

* ! ! ! ! ! ! ! ! Direct ARINC 429 line driver interface in a small package On-chip zener to set output levels On-chip line driver slope control and selection by logic input Low current 12 to 15 volt supplies CMOS / TTL logic pins Plastic and ceramic package options surface mount and DIP Themally en

Applications

* where more series resistance is added externally, typically for lightning protection devices. 5V ONE “A” SIDE CURRENT CONTROL TXAOUT HI-8585 = 37.5 OHMS HI-8556 = 10.0 OHMS NULL ZERO -5V ESD PROTECTION AND VOLTAGE TRANSLATION CONTROL LOGIC SLP1.5 5V ONE “B” SIDE CURRENT CONTROL TXBOUT HI-8585
