HT48R062 - (HT48R062 / HT48C062) Cost Effective I/O Type 8-Bit MCU

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT48R062
Manufacturer	Holtek Semiconductor
File Size	274.37 KB
Description	(HT48R062 / HT48C062) Cost Effective I/O Type 8-Bit MCU
Datasheet	HT48R062 Datasheet

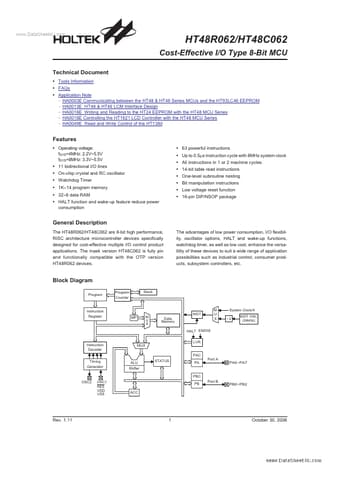

Additional preview pages of the HT48R062 datasheet.

Product details

Description

The HT48R062/HT48C062 are 8-bit high performance, RISC architecture microcontroller devices specifically designed for cost-effective multiple I/O control product applications.

Features

Operating voltage:.
63 powerful instructions.
Up to 0.5ms instruction cycle with 8MHz system clock.
All instructions in 1 or 2 machine cycles.
14-bit table read instructions.
One-level subroutine nesting.
Bit manipulation instructions.
Low voltage reset function.
16-pin DIP/NSOP package fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V.
11 bidirectional I/O lines.
On-chip crystal and RC oscillator.
Watchdog Timer.
1K´14 program memory.
