HT62104 - Infrared Remote Encoder

Datasheet Summary

Description

The HT62104 devices are high performance infrared remote control encoders which are manufactured in silicon gate CMOS technology.

The HT62104 devices support eight data key inputs and an LED output to indicate the transmission status.

📥 Download Datasheet

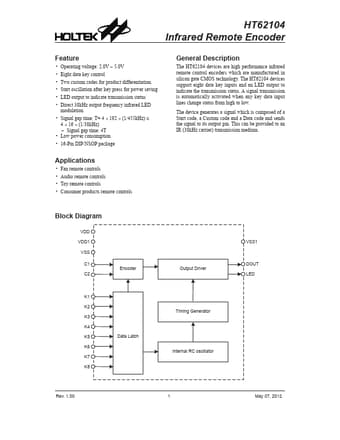

Datasheet preview – HT62104

Datasheet Details

Part number HT62104
Manufacturer Holtek Semiconductor
File Size 947.43 KB
Description Infrared Remote Encoder
Datasheet download datasheet HT62104 Datasheet
Additional preview pages of the HT62104 datasheet.

📁 Similar Datasheet

  • HT6215 - low-power single-phase smart meters dedicated to 128K chip MCU (Hi-TrendTechnology)
  • HT6207 - 318 Series of Encoders (Holtek Semiconductor Inc)
  • HT6207 - 3(18) Series of Encoders (Holtek Semiconductor Inc)
  • HT6221 - Multi-Purpose Encoders (Holtek Semiconductor Inc)
  • HT6222 - Multi-Purpose Encoders (Holtek Semiconductor Inc)
  • HT6230 - Infrared Remote Encoder (Holtek Semiconductor Inc)
  • HT6240-002 - Infrared Remote Encoder (Holtek Semiconductor Inc)
  • HT6247 - 3(18) Series of Encoders (Holtek Semiconductor Inc)
  • HT6256 - HIGH TEMPERATURE 32K x 8 STATIC RAM (Honeywell)
  • HT6264 - CMOS 8K x 8-Bit SRAM (Holtek Semiconductor Inc)
Other Datasheets by Holtek Semiconductor
  • HT6220A - (HT6220A - HT6222A) Multi-Purpose Encoders
  • HT6221A - (HT6220A - HT6222A) Multi-Purpose Encoders
  • HT6221B - Multi-Purpose Encoders
  • HT6222A - (HT6220A - HT6222A) Multi-Purpose Encoders
  • HT6513B - M+ Plug & Play Mouse Controller
  • HT66F002 - Cost-Effective A/D Flash MCU
  • HT66F0021 - 1K/2K Low-Cost A/D Flash MCU
  • HT66F0025 - Cost-Effective A/D Flash MCU

Full PDF Text Transcription

Click to expand full text
HT62104 Infrared Remote Encoder Feature • Operating voltage: 2.0V ~ 5.0V • Eight data key control • Two custom codes for product differentiation • Start oscillation after key press for power saving • LED output to indicate transmission status • Direct 38kHz output frequency infrared LED modulation • Signal gap time: T= 4 × 192 × (1/455kHz) ≈ 4 × 16 × (1/38kHz) –– Signal gap time: 4T • Low power consumption • 16-Pin DIP/NSOP package Applications • Fan remote controls • Audio remote controls • Toy remote controls • Consumer products remote controls General Description The HT62104 devices are high performance infrared remote control encoders which are manufactured in silicon gate CMOS technology.
