HT6207

318 Series of Encoders

HT6207 Features

* Operating voltage: 2.4V~12V Low power and high noise immunity CMOS technology Low standby current Three words transmission Built-in oscillator needs only 5% resistor

* Easy interface with an RF or infrared transmission media Minimal external component

HT6207 General Description

The 318 encoders are a series of CMOS LSIs for remote control system applications. They are capable of encoding 18 bits of information which consists of N address bits and 18-N data bits. Each address/data input is externally trinary programmable if bonded out. It is otherwise set floating internall.

HT6207 Datasheet (130.45 KB)

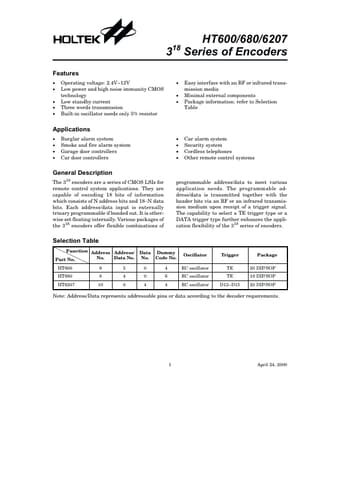

Preview of HT6207 PDF

Datasheet Details

Part number:

HT6207

Manufacturer:

Holtek Semiconductor Inc

File Size:

130.45 KB

Description:

318 series of encoders.
