HT62783A - 8-channel Darlington current driver

Product Overview

HTCSEMI

Datasheet Details

Part number	HT62783A
Manufacturer	HTCSEMI
File Size	367.03 KB
Description	8-channel Darlington current driver
Datasheet	HT62783A Datasheet

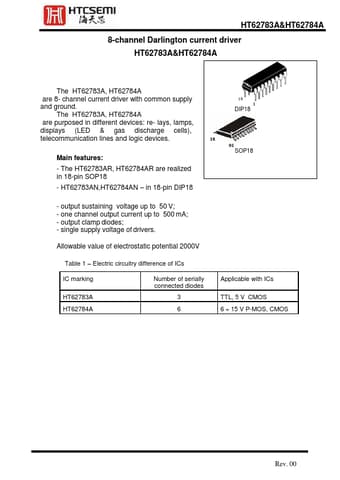

Additional preview pages of the HT62783A datasheet.

Product details

Description

Input Input Input Input Input Input Input Input Supply voltage pin Common pin (ground) Output Output Output Output Output Output Output Output Rev.00 HT62783A&HT62784A A HT62784A Fig 2 Electric block diagram Rev.00 HT62783A&HT62784A A HT62784A VCC R3 20k VD1 R1 10k VT2 IN VT1 VT3 VD3 VT4 VD7 VD2 VD4 R2 2,6k R4 10k R5 5k OUT VD5 VD6 GND Fig.3 Electrical scheme of one channel of HT62783A VCC R3 20к VD1 R1 10к VT2 IN VT1 VT3 VD3 VT4 VD10 VD2 VD4

Features

- The HT62783AR, HT62784AR are realized in 18-pin SOP18 - HT62783AN,HT62784AN.
in 18-pin DIP18 18 DIP18 18 01 SOP18 - output sustaining voltage up to 50 V; - one channel output current up to 500 mA; - output clamp diodes; - single supply voltage of drivers. Allowable value of electrostatic potential 2000V Table 1.
Electric circuitry difference of ICs IC marking HT62783A HT62784A Number of serially connected diodes 3 6 Applicable with ICs TTL, 5 V CMOS 6  15 V P-MOS, CMO.
