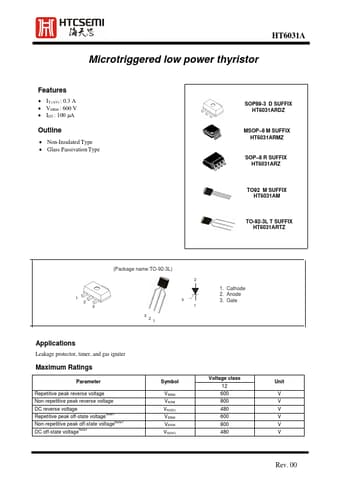

HT6031A
Microtriggered low power thyristor
Features
IT (AV) : 0.3 A VDRM : 600 V IGT : 100 A
Outline
Non-Insulated Type Glass Passivation Type
SOP89-3 D SUFFIX HT6031ARDZ
MSOP−8 M SUFFIX HT6031ARMZ
SOP−8 R SUFFIX HT6031ARZ
TO92 M SUFFIX HT6031AM
TO-92-3L T SUFFIX HT6031ARTZ
1 2 3
(Package name:TO-92-3L) 22
3 32 1 1
33 11
1. 1C.atChaotdheode 2. 2A.noAdneode 3. 3G.aGteate
Applications
Leakage protector, timer, and gas igniter
Maximum Ratings
Parameter
Repetitive peak reverse voltage Non-repetitive peak reverse voltage DC reverse voltage Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 DC off-state voltageNote1
Symbol
VRRM VRSM VR(DC) VDRM VDSM VD(DC)
Voltage class 12 600 800 480 600 800 480
Unit
V V V V V V
Rev.
HT6031A Datasheet
