HT6312A 60V 3A 150kHz Step-Down Voltage Regulator

The HT63xxA series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an ad.

HT6312A Features

* 3.3V, 5V, 12V,18V and adjustable output versions

* Adjustable version output voltage range, 1.2V to 57V

* ±4% maximum over line and load conditions

* Guaranteed 3A output load current

* Input voltage range up to 60V

* Requires only 4 external components

* Excellent line

HT6333A-HTCSEMI.pdf

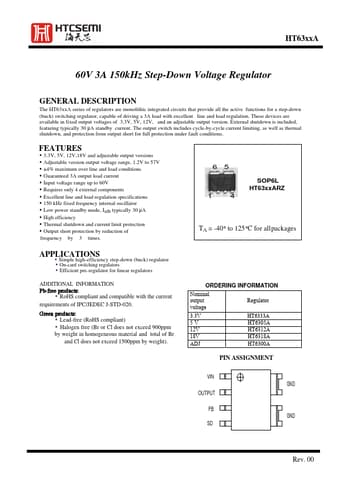

HT6312A Datasheet Preview — This datasheet PDF includes multiple part numbers: HT6312A, HT6333A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT6312A, HT6333A

Manufacturer:

HTCSEMI

File Size:

727.56 KB

Description:

60v 3a 150khz step-down voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: HT6312A, HT6333A.
Please refer to the document for exact specifications by model.
