HT6333A - 60V 3A 150kHz Step-Down Voltage Regulator

Product Overview

HTCSEMI

Datasheet Details

Part number	HT6333A
Manufacturer	HTCSEMI
File Size	727.56 KB
Description	60V 3A 150kHz Step-Down Voltage Regulator
Datasheet	HT6333A Datasheet

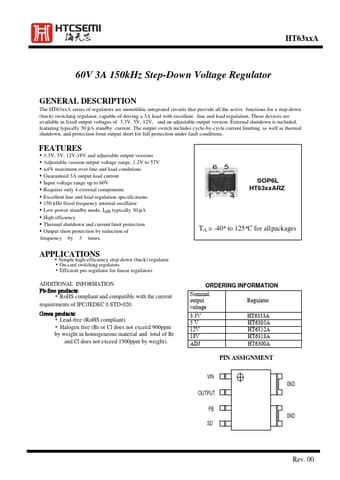

Additional preview pages of the HT6333A datasheet.

Product details

Description

The HT63xxA series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation.

Features

3.3V, 5V, 12V,18V and adjustable output versions.
Adjustable version output voltage range, 1.2V to 57V.
±4% maximum over line and load conditions.
Guaranteed 3A output load current.
Input voltage range up to 60V.
Requires only 4 external components.
Excellent line and load regulation specifications.
150 kHz fixed frequency internal oscillator.
Low power standby mode, Istb typically 30 μA.
High efficiency.
Thermal shutdown and current limit.
