HT6050A - synchronous step-down converter

Datasheet Summary

Description

HT6050A is a step-down DC/DC regulator with an internal switch, featuring SKIP control mode, which combines low quiescent current with high switching frequency to achieve high-efficiency regulation over a wide range of load currents.

Features

  • 20-µA Quiescent current in regulation.
  • Input voltage range: 4V-60V.
  • Output voltage range: 1V-VIN.
  • Integrated upper and lower power MOSFET maximum current: 5A.
  • Adjustable frequency range: 200KHz~2MHz.
  • Automatic switching of CCM/DCM/PFM mode.
  • Adjustable soft-start time and Output voltage tracking capability.
  • Automatically switched bypass linear power supply.
  • Provides ultra-low input and output dropout voltage close to 100% duty cycle.
  • Internal Com.

📥 Download Datasheet

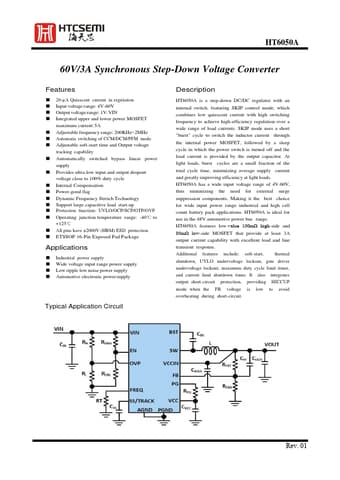

Datasheet preview – HT6050A
