HT6034 Datasheet - Holtek Semiconductor Inc

HT6034 - 312 Series of Decoders

The 312decoders are a series of CMOS LSIs for remote control system applications.

They are paired with 312series of encoders.

For proper operation a pair of encoder/decoder with the same number of address and data format should be selected (refer to the encoder/decoder cross reference tables).

The 3

HT6034 Features

* Operating voltage: 2.4V~12V Low power and high noise immunity CMOS technology Low standby current Capable of decoding 12 bits of information Pair with Holtek¢s 312 series of encoders 8~12 address pins 0~4 data pins Trinary address setting

HT6034_HoltekSemiconductorInc.pdf

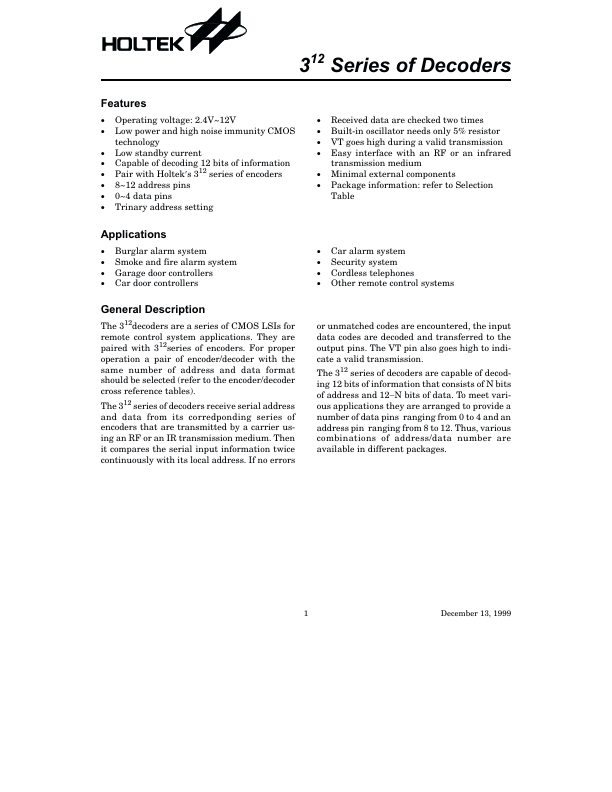

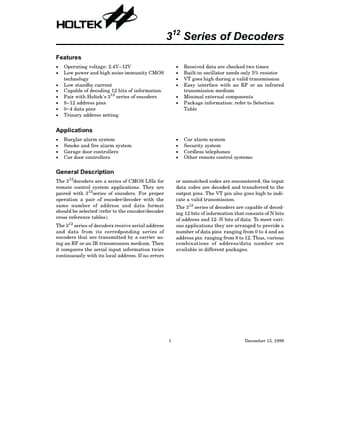

Preview of HT6034 PDF

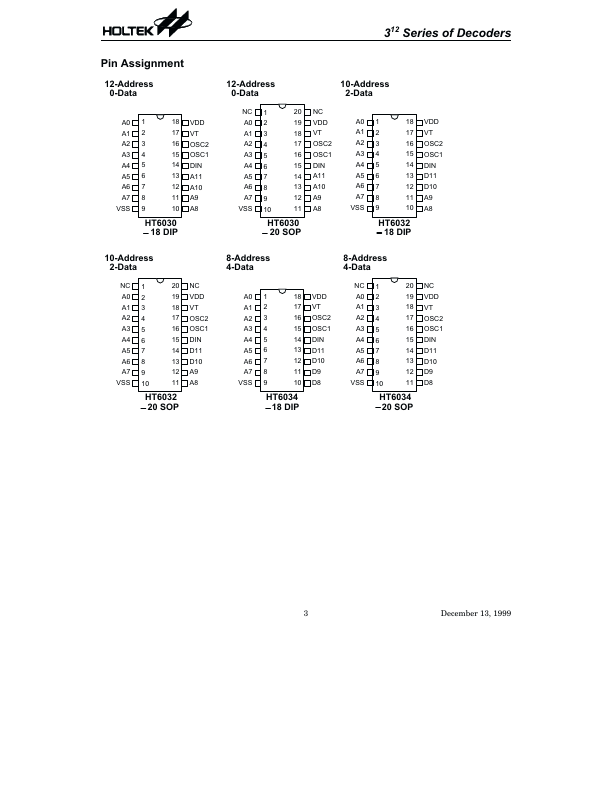

HT6034 Datasheet Preview Page 2 HT6034 Datasheet Preview Page 3

Datasheet Details

Part number:

HT6034

Manufacturer:

Holtek Semiconductor Inc

File Size:

106.78 KB

Description:

312 series of decoders.
