HT6220A (HT6220A - HT6222A) Multi-Purpose Encoders

The devices are CMOS LSI encoders designed for use in remote control systems. They are capable of encoding 16-bit address codes and 8-bit data codes. Each address/data input can be set to one of the two logic states, 0 and 1. The HT6220A/HT6221A/HT6222A contain 30keys (K1~K16, K17~K20, K33~K34, K37~.

HT6220A Features

* Operating voltage: 2.0V~3.6V

* DOUT with 38kHz carrier for IR medium

* Low standby current

* Minimum transmission word: one word

* Build-in RC (Internal RC) oscillator

* 16-bit address codes

* 8-bit data codes

* PPM code method

* Three double-active keys

* M

HT6220A_HoltekSemiconductor.pdf

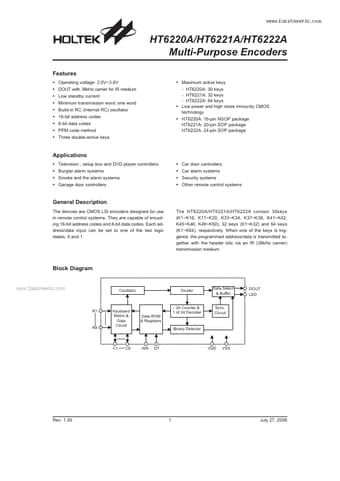

HT6220A Datasheet Preview — Preview of HT6220A PDF
