HT82V735 Datasheet - Holtek Semiconductor

330mW Stereo Audio Power Amp

HT82V735 Features

* Operating voltage: 2.4V~6.0V

* Very low standby current 0.5mA (Typ.)

* High signal-to-noise ratio

* High slew rate

* Output power 330mW at 10% THD+N into 8W

* Excellent power supply ripple rejection

* Low power consumption

* Wide temperature operating range

* Di

HT82V735 General Description

HT82V735 is a class AB stereo earphone driver designed for portable digital audio application. Pin assignments and application circuits are compatible with LM4880 which is suitable for effective low cost applications. The HT82V735 can deliver a maximum of 330mW Output power to an 8W load with less t.

HT82V735 Datasheet (131.67 KB)

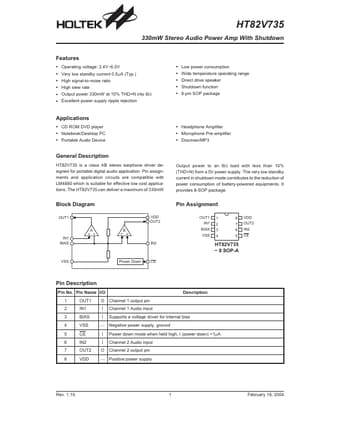

HT82V735 Datasheet Preview — Preview of HT82V735 PDF

Datasheet Details

Part number:

HT82V735

Manufacturer:

Holtek Semiconductor

File Size:

131.67 KB

Description:

330mw stereo audio power amp.
