HT82V736 - Stereo Headphone Driver

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT82V736 Stereo Headphone Driver by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT82V736

Datasheet Details

Part number	HT82V736
Manufacturer	Holtek Semiconductor
File Size	168.46 KB
Description	Stereo Headphone Driver
Datasheet	HT82V736 Datasheet

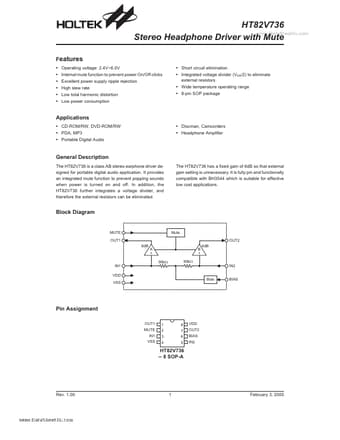

Additional preview pages of the HT82V736 datasheet.

Product details

Description

The HT82V736 is a class AB stereo earphone driver designed for portable digital audio application.

Features

Operating voltage: 2.4V~6.0V.
Internal mute function to prevent power On/Off clicks.
Excellent power supply ripple rejection.
High slew rate.
Low total harmonic distortion.
Low power consumption.
Short circuit elimination.
Integrated voltage divider (VDD/2) to eliminate external resistors.
Wide temperature operating range.
8-pin SOP package.
