HT7121-1

30mA Low Power LDO

HT7121-1 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient Applications

* Battery-powered equipment

* Communication equipment

* High input voltage (up to 24V)

* Output voltage accuracy: tolerance ±3%

* TO92, SOT89 and SOT23-5 package

* Audio/Video e

HT7121-1 General Description

The HT71XX-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent curre.

HT7121-1 Datasheet (138.99 KB)

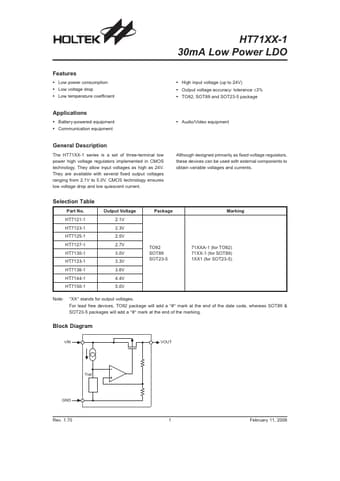

Preview of HT7121-1 PDF

Datasheet Details

Part number:

HT7121-1

Manufacturer:

Holtek

File Size:

138.99 KB

Description:

30ma low power ldo.
