HT7130-2 30mA TinyPower LDO

The HT71xx-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent curre.

HT7130-2 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to 30V)

* Output voltage accuracy: tolerance ±1%

* Package types: 3-pin TO92, 3-pin SOT89 and 5-pin SOT23 Applications

* Battery-powered eq

HT7121-2-Holtek.pdf

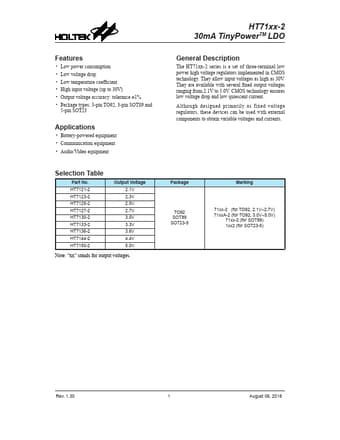

HT7130-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7130-2, HT7121-2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT7130-2, HT7121-2

Manufacturer:

Holtek

File Size:

369.60 KB

Description:

30ma tinypower ldo.

Note:

This datasheet PDF includes multiple part numbers: HT7130-2, HT7121-2.
Please refer to the document for exact specifications by model.
