HT7130 - High Voltage Regulator

Description

The HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

They allow input voltages as high as 24V.

They are available with several fixed output voltages ranging from 3.0V to 5.0V.

Features

  • Low power consumption Low voltage drop Low temperature coefficient.
  • High input voltage (up to 24V) TO-92 and SOT-89 packages.

📥 Download Datasheet

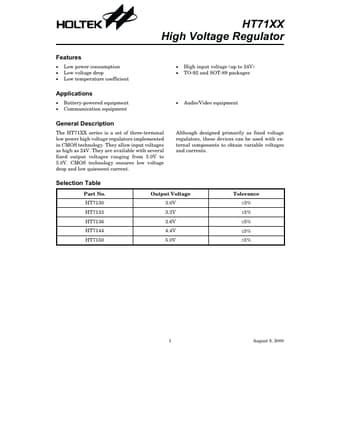

Datasheet preview – HT7130

Datasheet Details

Part number HT7130
Manufacturer Holtek Semiconductor Inc
File Size 94.93 KB
Description High Voltage Regulator
Datasheet download datasheet HT7130 Datasheet
Additional preview pages of the HT7130 datasheet.

📁 Similar Datasheet

  • HT7130-1 - 30mA Low Power LDO (Holtek)
  • HT7130-2 - 30mA TinyPower LDO (Holtek)
  • HT7133-1 - 30mA Low Power LDO (Holtek)
  • HT7133-2 - 30mA TinyPower LDO (Holtek)
  • HT7135A - 4 1/2-DIGIT PRECISION ANALOG-TO-DIGITAL CONVERTERS (HTCSEMI)
  • HT7136-1 - 30mA Low Power LDO (Holtek)
  • HT7136-2 - 30mA TinyPower LDO (Holtek)
  • HT7121-1 - 30mA Low Power LDO (Holtek)
  • HT7121-2 - 30mA TinyPower LDO (Holtek)
  • HT7123-1 - 30mA Low Power LDO (Holtek)
Other Datasheets by Holtek Semiconductor Inc

Full PDF Text Transcription

Click to expand full text
HT71XX High Voltage Regulator Features · · · Low power consumption Low voltage drop Low temperature coefficient · · High input voltage (up to 24V) TO-92 and SOT-89 packages Applications · · Battery-powered equipment Communication equipment · Audio/Video equipment General Description The HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents. Selection Table Part No.
