SE3470

AlGaAs Infrared Emitting Diode

Honeywell

SE3470 Features

* TO-46 metal can package

* Choice of flat window or lensed package

* 90¡ or 20¡ (nominal) beam angle option

* 880 nm wavelength

* Higher output power than GaAs at equivalent drive currents

* Wide operating temperature range (- 55¡C to +125¡C)

SE3470 General Description

The SE3470/5470 series consists of aluminum gallium arsenide infrared emitting diode mounted in a TO-46 metal can package. The SE3470 series has flat window cans providing a wide beam angle, while the SE5470 series has glass lensed cans providing a narrow beam angle. These devices typically exhibit .

SE3470 Datasheet (380.20 KB)

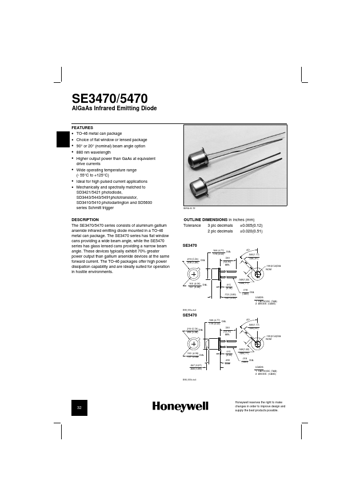

SE3470 Datasheet Preview — Preview of SE3470 PDF

Datasheet Details

Part number:

SE3470

Manufacturer:

Honeywell

File Size:

380.20 KB

Description:

Algaas infrared emitting diode.
