SE302A

Light Emitting Diode

SE302A Features

* D Low cost D High output power D Fast switching time D Long life, solid state reliability D Compact, rugged, lightweight D Spectrally matched to silicon sensors (Good com- patibility with Darlington photo transistor (PH101)) D Easily assembled in linear arrays D Compatible with integrated circuits A

SE302A General Description

The SE302A is a GaAs (Gallium Arsenide) infrared emitting diode which is mounted on a lead frame and molded in a clear plastic lens. On forward bias, it emits a spectrally narrow band of radiation peaking at 940nm. The close wavelength match of this device to silicon sensors makes it ideally suited .

SE302A Datasheet (109.59 KB)

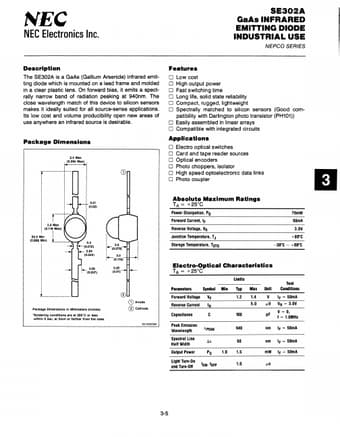

Preview of SE302A PDF

Datasheet Details

Part number:

SE302A

Manufacturer:

NEC

File Size:

109.59 KB

Description:

Light emitting diode.
