Full PDF Text Transcription for RFM12B (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
RFM12B. For precise diagrams, and layout, please refer to the original PDF.

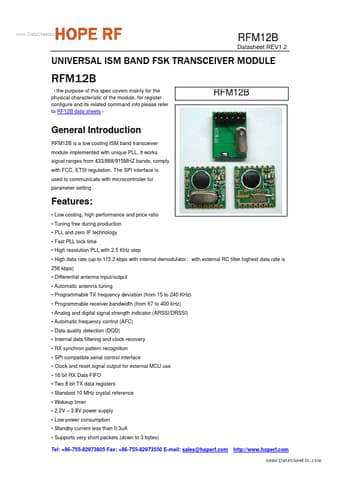

www.DataSheet4U.com RFM12B Datasheet REV1.2 UNIVERSAL ISM BAND FSK TRANSCEIVER MODULE RFM12B （the purpose of this spec covers mainly for the physical characteristic of th...
View more extracted text
rpose of this spec covers mainly for the physical characteristic of the module, for register configure and its related command info please refer to RF12B data sheets） RFM12B General Introduction RFM12B is a low costing ISM band transceiver module implemented with unique PLL. It works signal ranges from 433/868/915MHZ bands, comply with FCC, ETSI regulation. The SPI interface is used to communicate with microcontroller for parameter setting. Features: • Low costing, high performance and price ratio • Tuning free during production • PLL and zero IF technology • Fast PLL lock time • High resolution PLL with 2.5 KHz step • Hig
RFM12B Datasheet
