HTF8A80

NON INSULATED TYPE TRIAC

HTF8A80 Features

* Repetitive Peak Off-State Voltage: 800V

* R.M.S On-state Current(IT(RMS)=8A)

* High Commutation dv/dt General Description TO-220F The Triac HTP8A80 is suitable for AC switching application, phase control application such as heater control, motor control, lighting control, and static

HTF8A80 General Description

TO-220F The Triac HTP8A80 is suitable for AC switching application, phase control application such as heater control, motor control, lighting control, and static switching relay. Absolute Maximum Ratings Ta=25 Tstg Storage Temperature Tj Operating Junction Temperature PGM Peak Gate Power Dissi.

HTF8A80 Datasheet (158.54 KB)

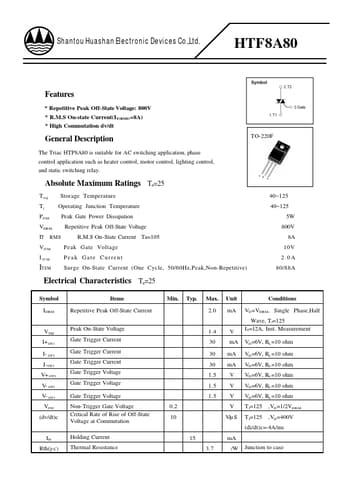

Preview of HTF8A80 PDF

Datasheet Details

Part number:

HTF8A80

Manufacturer:

Huashan

File Size:

158.54 KB

Description:

Non insulated type triac.
