HTFS400-P - Current Transducer

Product Overview

LEM

📥 Download Datasheet

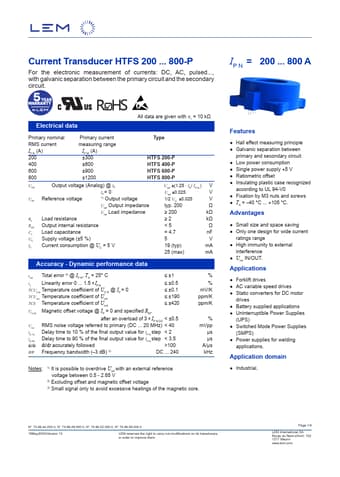

HTFS400-P Current Transducer by LEM - Datasheet Preview — Datasheet preview – HTFS400-P

Datasheet Details

Part number	HTFS400-P
Manufacturer	LEM
File Size	2.09 MB
Description	Current Transducer
Datasheet	HTFS400-P Datasheet
Note	This datasheet PDF includes multiple part numbers: HTFS400-P, HTFS200-P. Please refer to the document for exact specifications by model.
Additional preview pages of the HTFS400-P datasheet.

Product details

Features

Hall effect measuring principle.
Galvanic separation between primary and secondary circuit.
Low power consumption.
Single power supply +5 V.
Ratiometric offset.
Insulating plastic case recognized according to UL 94-V0.
Fixation by M3 nuts and screws.
TA = ‒40 °C +105 °C. Advantages.
Small size and space saving.
Only one design for wide current ratings range.
High immunity to external interference.
Uref IN/OUT.
