Current Transducer HTFS 400-P/SP7 For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit.

IP N = 400 A Electrical data All data are given with RL = 10 kΩ IP N Primary nominal RMS current IP M Primary current, measuring range Uout Output voltage (Analog) @ IP IP = 0 Uref Reference voltage Uref Output voltage 1) Uref Output impedance Uref Load impedance RL Load resistance Rout Output i

HTFS400-P-SP7 Features

* Hall effect measuring principle

* Galvanic separation between primary and secondary circuit

* Low power consumption

* Insulating plastic case recognized according to UL 94-V0

* TA =

* 40 °C +105 °C. Special features

* Single power suppl

HTFS400-P-SP7-LEM.pdf

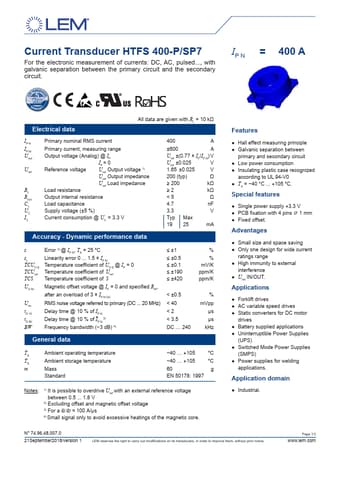

Preview of HTFS400-P-SP7 PDF
