HTFS800-P Current Transducer

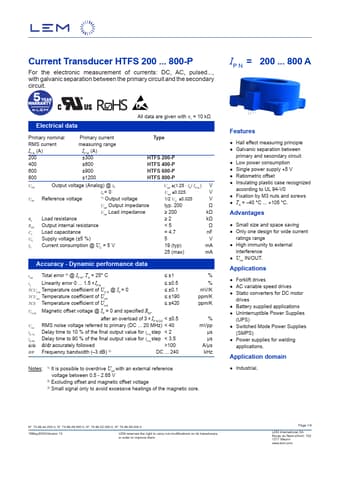

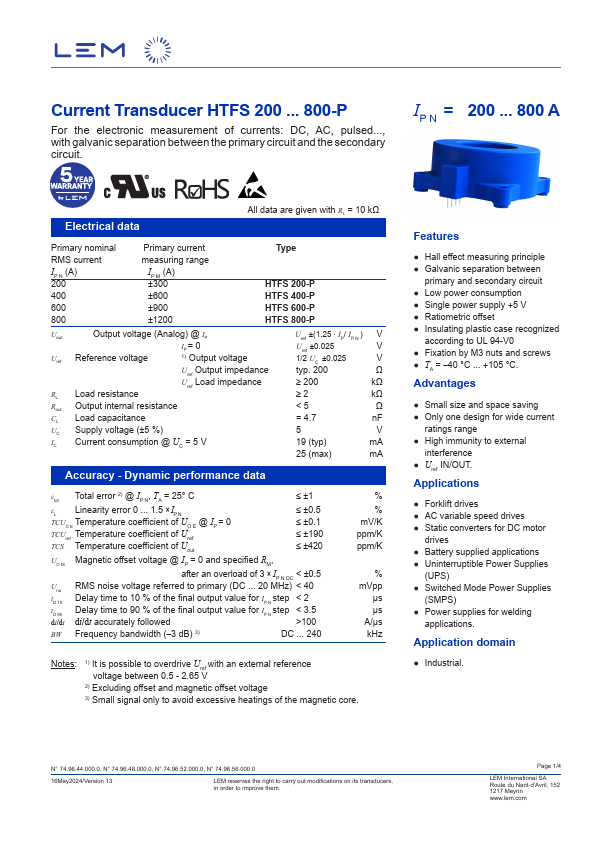

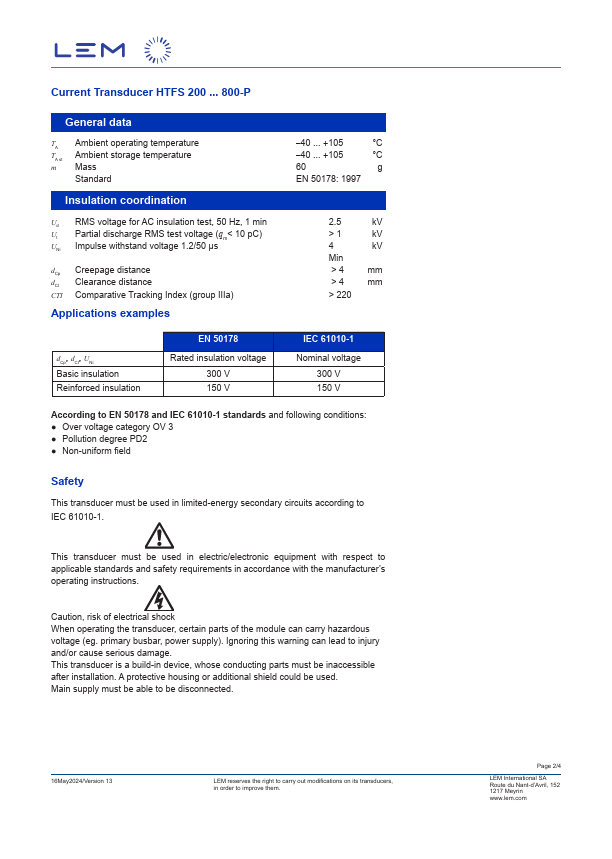

Current Transducer HTFS 200 800-P For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 200 800 A Electrical data All data are given with RL = 10 kΩ Primary nominal RMS current Primary current Type measuring range IP N (A) 200 400 600 800 IP M (A) ±300 ±600 ±900 ±1200 HTFS 200-P HTFS 400-P HTFS 600-P HTFS 800-P Uout Output voltage (Analog) @ IP IP = 0 Uref.

HTFS800-P Features

* Hall effect measuring principle

* Galvanic separation between primary and secondary circuit

* Low power consumption

* Single power supply +5 V

* Ratiometric offset

* Insulating plastic case recognized according to UL 94-V0

* Fixation by M3 nuts and screws

* TA = ‒40

HTFS200-P_LEM.pdf

HTFS800-P Datasheet Preview — This datasheet PDF includes multiple part numbers: HTFS800-P, HTFS200-P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HTFS800-P, HTFS200-P

Manufacturer:

LEM

File Size:

2.09 MB

Description:

Current transducer.

Note:

This datasheet PDF includes multiple part numbers: HTFS800-P, HTFS200-P.
Please refer to the document for exact specifications by model.
