HB6298A-2009

Switchmode Single-Cell/Two-Cell Li-ion/Li Polymer Battery Charger

HB6298A-2009 Features

* High conversion efficiency charger for 1-cell/2-cell Li-ion/Li polymer battery

* 0.5％ voltage accuracy

* Full charged voltage trimming by resistors

* Build-in battery detection

* Integrated power MOSFET

* Soft starting

* 300kHz PWM Oscillator frequency

* Programmabl

HB6298A-2009 General Description

NO. 1 2 SYMBOL STAT2 STAT1 I/O O O STAT1(GREEN) off off on off off 3&4 5 6 7 8 VIN VCC NC SLEEP TTC I I O SLEEP mode output，to control the external power MOSFET Connect a capacitor from this node to VSS to set the HB6298A timer, when this input is low, the timer and termination detection are disable.

HB6298A-2009 Datasheet (350.34 KB)

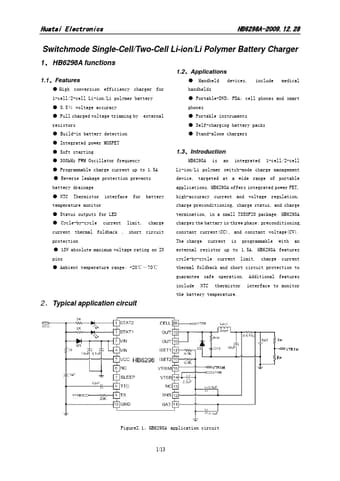

Preview of HB6298A-2009 PDF

Datasheet Details

Part number:

HB6298A-2009

Manufacturer:

Huatai Electronics

File Size:

350.34 KB

Description:

Switchmode single-cell/two-cell li-ion/li polymer battery charger.
Huatai Electronics HB6298A-2009.12.28 Switchmode Single-Cell/Two-Cell Li-ion/Li Polymer Battery Charger 1、 HB6298A functions 1.2、Applications 1.1、Fe.
