* -Single channel interface -Compliant with IEEE 802.3 Standard -Surface mount package designed for IR reflow process (240oC peak) For alternate signal routing and other available schematics, see schematic HB6xx-Schematic #6. Chip Side Cable Side See Table 10BASE-T Part Number Table Part Number
HB628-1
Transpower
81.38 KB
10base-t single port ethernet magnetics.

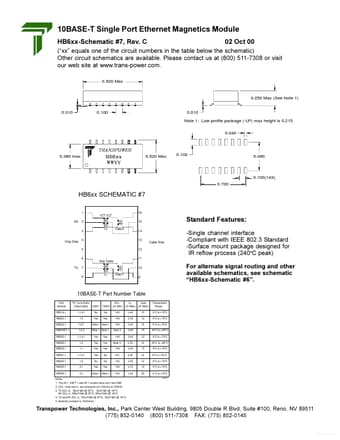

10BASE-T Single Port Ethernet Magnetics Module
HB6xx-Schematic #7, Rev. C 02 Oct 00
(xx equals one of the circuit numbers in the table below the sch.
