HB629-1, HB6xx, 10BASE-T Single Port Ethernet Magnetics

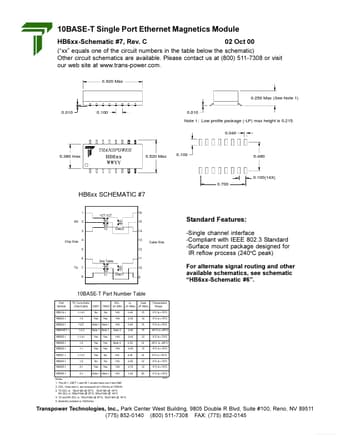

10BASE-T Single Port Ethernet Magnetics Module HB6xx-Schematic #7, Rev.C 02 Oct 00 (xx equals one of the circuit numbers in the table below the sch.

datasheet Preview Page 1 from Datasheet4u.com

HB6xx_Transpower.pdf

HB629-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: HB629-1, HB6xx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HB629-1, HB6xx

Manufacturer:

Transpower

File Size:

81.38 KB

Description:

10BASE-T Single Port Ethernet Magnetics

Note:

This datasheet PDF includes multiple part numbers: HB629-1, HB6xx.
Please refer to the document for exact specifications by model.

Features

* -Single channel interface -Compliant with IEEE 802.3 Standard -Surface mount package designed for IR reflow process (240oC peak) For alternate signal routing and other available schematics, see schematic HB6xx-Schematic #6. Chip Side Cable Side See Table 10BASE-T Part Number Table Part Number
