HYM71V16655BLT6, HYM71V16655BT6 Datasheet - Hynix Semiconductor

HYM71V16655BLT6 PC100 SDRAM Unbuffered DIMM

Preliminary The Hynix HYM71V16655BT6 Series are 16Mx64bits Synchronous DRAM Modules. The modules are composed of eight 8Mx16bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 168pin glass-epoxy printed circuit board. Two 0.33uF and one 0.1uF dec.

HYM71V16655BLT6 Features

* PC100MHz support 168pin SDRAM Unbuffered DIMM Serial Presence Detect with EEPROM 1.15” (29.21mm) Height PCB with double sided components Single 3.3±0.3V power supply - 1, 2, 4 or 8 or Full page for Sequential Burst

* All device pins are compa

HYM71V16655BT6_HynixSemiconductor.pdf

HYM71V16655BLT6 Datasheet Preview — This datasheet PDF includes multiple part numbers: HYM71V16655BLT6, HYM71V16655BT6. Please refer to the document for exact specifications by model.

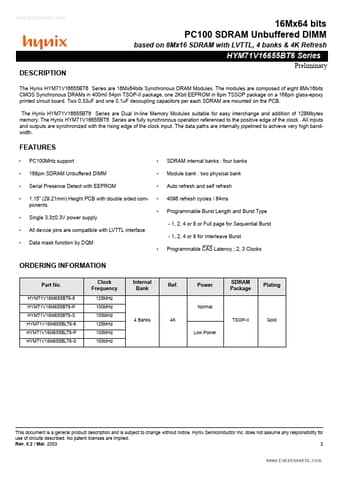

HYM71V16655BLT6 Datasheet Preview Page 2

HYM71V16655BLT6 Datasheet Preview Page 3

Datasheet Details

Part number:

HYM71V16655BLT6, HYM71V16655BT6

Manufacturer:

Hynix Semiconductor

File Size:

442.59 KB

Description:

Pc100 sdram unbuffered dimm.

Note:

This datasheet PDF includes multiple part numbers: HYM71V16655BLT6, HYM71V16655BT6.
Please refer to the document for exact specifications by model.
