HYM724000GS-50 Datasheet - Siemens

HYM724000GS-50 - 4M x 72-Bit Dynamic RAM Module

50ns DRAM module 60ns DRAM module 50ns DRAM module 60ns DRAM module Note: 1 = High Level ( Driver Output) , 0 = Low Level (Driver Output) for PDE active ( ground) .

For PDE at a high level all PD terminal are in tri-state.

Semiconductor Group 2 HYM724000/10GS-50/-60 4M x 72 ECC- Module Pin Con

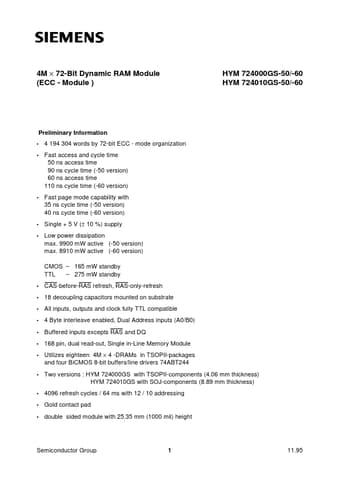

4M × 72-Bit Dynamic RAM Module (ECC - Module ) HYM 724000GS-50/-60 HYM 724010GS-50/-60 Preliminary Information 4 194 304 words by 72-bit ECC - mode organization Fast access and cycle time 50 ns access time 90 ns cycle time (-50 version) 60 ns access time 110 ns cycle time (-60 version) Fast page mode capability with 35 ns cycle time (-50 version) 40 ns cycle time (-60 version) Single + 5 V (± 10 %) supply Low power dissipation max.

9900 mW active (-50 version) max.

8910 mW

HYM724000GS-50_SiemensSemiconductorGroup.pdf

Preview of HYM724000GS-50 PDF
HYM724000GS-50 Datasheet Preview Page 2 HYM724000GS-50 Datasheet Preview Page 3

Datasheet Details

Part number:

HYM724000GS-50

Manufacturer:

Siemens

File Size:

74.77 KB

Description:

4m x 72-bit dynamic ram module.
