HYM71V16635AT6_HynixSemiconductor.pdf
Datasheet Details
Part number:
HYM71V16635ALT6, HYM71V16635AT6
Manufacturer:
Hynix Semiconductor
File Size:
304.30 KB
Description:
Pc133 sdram unbuffered dimm.
Note:
This datasheet PDF includes multiple part numbers: HYM71V16635ALT6, HYM71V16635AT6.
Please refer to the document for exact specifications by model.

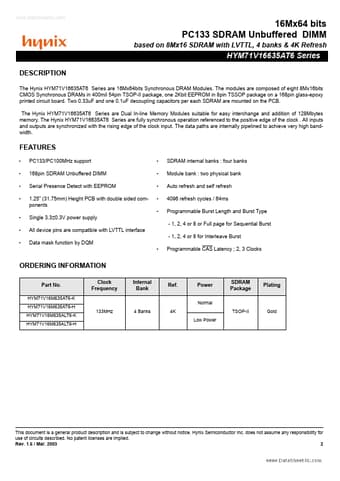

HYM71V16635ALT6, HYM71V16635AT6, PC133 SDRAM Unbuffered DIMM
The Hynix HYM71V16635AT6 Series are 16Mx64bits Synchronous DRAM Modules.
The modules are composed of eight 8Mx16bits CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 168pin glass-epoxy printed circuit board.
Two 0.33uF and one 0.1uF decoupling capac
HYM71V16635ALT6 Features
* PC133/PC100MHz support 168pin SDRAM Unbuffered DIMM Serial Presence Detect with EEPROM 1.25” (31.75mm) Height PCB with double sided components Single 3.3±0.3V power supply - 1, 2, 4 or 8 or Full page for Sequential Burst
* All device pins are
