HP6513 High Reliability LDO

The HP6513 series is a high accuracy, high input voltage low quiescent current, high speed, and low dropout liner regulator with high ripple rejection. The input voltage is up to 40V and load current is up to 300mA at VOUT = 5V & VIN = 7V. The device is manufactured with BCD process. The HP6513 offe.

HP6513 Features

* Input voltage: 4.75V~40V

* Output voltage: 1.8V~5.7V

* Output accuracy: < ±2%

* Output current: 150mA (Typ.) Up to 300mA @ VIN = 7V, VOUT = 5V, HP6513T3A package

* PSRR: 60dB @ 100Hz

* Dropout voltage: 600mV @ IOUT = 100mA

* Quiescent current: 4.2μA @ VIN = 12V(Typ.)

HP6513-Hypower.pdf

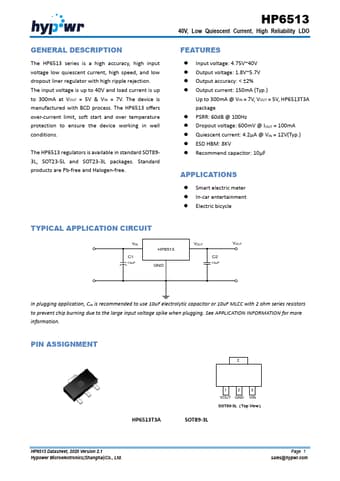

HP6513 Datasheet Preview — Preview of HP6513 PDF

Datasheet Details

Part number:

HP6513

Manufacturer:

Hypower

File Size:

872.07 KB

Description:

High reliability ldo.
