HP6513S5A, HP6513 Datasheet - Hypower

HP6513S5A, HP6513, High Reliability LDO

GENERAL .
The HP6513 series is a high accuracy, high input voltage low quiescent current, high speed, and low dropout liner regulator with high ripple rejection.

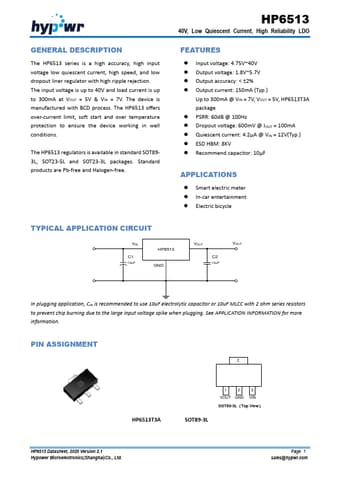

datasheet Preview Page 1 from Datasheet4u.com

HP6513-Hypower.pdf

HP6513S5A Datasheet Preview — This datasheet PDF includes multiple part numbers: HP6513S5A, HP6513. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HP6513S5A, HP6513

Manufacturer:

Hypower

File Size:

872.07 KB

Description:

High Reliability LDO

Note:

This datasheet PDF includes multiple part numbers: HP6513S5A, HP6513.
Please refer to the document for exact specifications by model.

Features

* Input voltage: 4.75V~40V
* Output voltage: 1.8V~5.7V
* Output accuracy: < ±2%
* Output current: 150mA (Typ. ) Up to 300mA @ VIN = 7V, VOUT = 5V, HP6513T3A package
* PSRR: 60dB @ 100Hz
* Dropout voltage: 600mV @ IOUT = 100mA
* Quiescent current: 4.2μA @ VIN = 12V(Typ. )

Applications

* Smart electric meter
* In-car entertainment
* Electric bicycle TYPICAL APPLICATION CIRCUIT VIN C1 10uF HP6513 GND VOUT C2 10uF VOUT In plugging application, CIN is recommended to use 10uF electrolytic capacitor or 10uF MLCC with 2 ohm series resistors to prevent chip burning due
