IA2014

1.5A Synchronous Step-Down Converter

IA2014 Datasheet (821.80 KB)

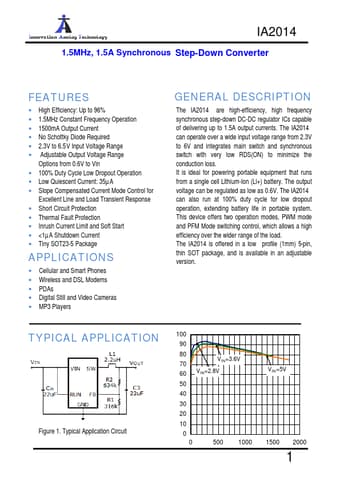

Preview of IA2014 PDF

Datasheet Details

Part number:

IA2014

Manufacturer:

IAT

File Size:

821.80 KB

Description:

1.5a synchronous step-down converter.

IA2014 Features

* High Efficiency: Up to 96%

* 1.5MHz Constant Frequency Operation

* 1500mA Output Current

* No Schottky Diode Required

* 2.3V to 6.5V Input Voltage Range

* Adjustable Output Voltage Range Options from 0.6V to Vin

* 100% Duty Cycle Low Dropout

IA2014 General Description

The IA2014 are high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 1.5A output currents. The IA2014 can operate over a wide input voltage range from 2.3V to 6V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the co.
