IC-DX Datasheet, Driver, IC-Haus

IC-DX Features

• Driver o o o o o o o o o Configurable high-side, low-side and push-pull operation Current limited output (< 450 mA) Reverse polarity protection 150 mA output current 5 µs input filter for spike

PDF File Details

Part number:

IC-DX

Manufacturer:

IC-Haus

File Size:

507.68kb

Download:

📄 Datasheet

Description:

Universal digital sensor output driver. The iC-DX is a monolithic switch capable of driving ohmic, inductive and capacitive loads and features integrated reverse polarity pr

IC-DX Application

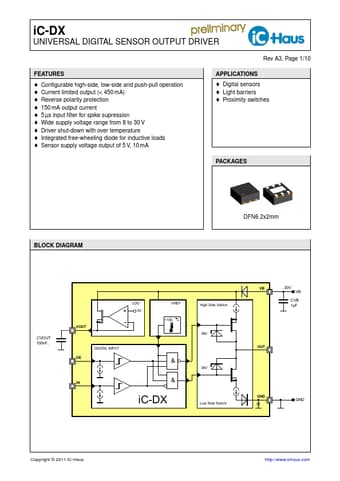

• Applications o Digital sensors o Light barriers o Proximity switches PACKAGES DFN6 2x2mm BLOCK DIAGRAM VB ..30V VB LDO VREF High Side Switc
