IP101A, IP101ALF Datasheet - IC Plus

IP101A Single port 10/100 Fast Ethernet Transceiver

IP101A LF is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. It supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost. To improve the system performance, IP101A LF provides a hardware i.

IP101A Features

* 10/100Mbps TX Full-duplex or half-duplex Supports Auto MDI/MDIX function Fully compliant with IEEE 802.3/802.3u Supports IEEE 802.3u auto-negotiation Supports MII / RMII / SNI interface IEEE 802.3 full duplex control specification Supports Automatic Power Saving mode Supports BaseLine Wander (BLW) c

IP101ALF_ICPlus.pdf

This datasheet PDF includes multiple part numbers: IP101A, IP101ALF. Please refer to the document for exact specifications by model.

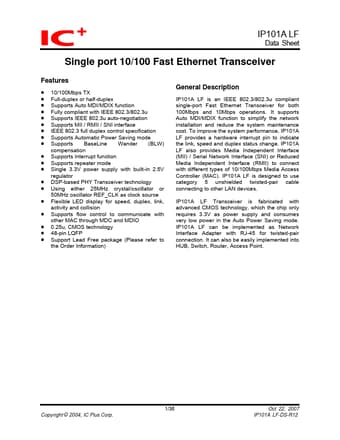

IP101A Datasheet Preview Page 2 IP101A Datasheet Preview Page 3

Datasheet Details

Part number:

IP101A, IP101ALF

Manufacturer:

IC Plus

File Size:

2.46 MB

Description:

Single port 10/100 fast ethernet transceiver.

Note:

This datasheet PDF includes multiple part numbers: IP101A, IP101ALF.
Please refer to the document for exact specifications by model.
