IP101LF Datasheet, Transceiver, IC Plus

IP101LF Features

  • Transceiver 10/100Mbps TX Full-duplex or half-duplex Supports Auto MDI/MDIX function Fully compliant with IEEE 802.3/802.3u Supports IEEE 802.3u auto-negotiation Supports MII interface IEEE 802.3 f

PDF File Details

Part number:

IP101LF

Manufacturer:

IC Plus

File Size:

343.63kb

Download:

📄 Datasheet

Description:

Single port 10/100 fast ethernet transceiver. IP101 LF is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. It supports

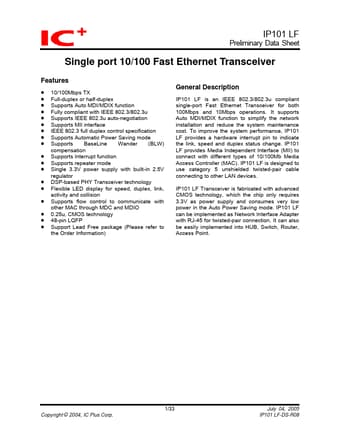

Datasheet Preview: IP101LF 📥 Download PDF (343.63kb)
Page 2 of IP101LF Page 3 of IP101LF
