IP113F - Managed 10/100Base-TX / FX Media Converter

IP113F Description

www.DataSheet4U.com IP113F Preliminary Data Sheet Managed 10/100Base-TX / FX Media Converter .
IP113F can be a 10/100BASE-TX to 100BASE-FX converter or a 100BASE-FX to 100BASE-FX repeater with an SMI port for management.

IP113F Features

* A 10/100BASE-TX/ 100BASE-FX converter with a SMI port for management Built in a 10/100BASE-TX transceiver Built in a PHY for 100BASE-FX Built in a 2-port switch
* Pass all packets without address and CRC check (optional)
* Supports modified cut-through frame forwarding for low latenc

IP113F Applications

* Managed converter (up to 31 pieces of IP113F in a chassis) VCC FAST_FWD MDC, MDIO IP113F uC (for management) X1 X 31 Un-managed converter VCC DIRECT_WIRE TP_FORCE SPEED_MODE DUPLEX_MODE IP113F 100BASE-TX PHY1 SWITCH (un-used) 100BASE-FX PHY2 RAM (un-used) Fiber Repeater VCC 100BASE-FX

📥 Download Datasheet

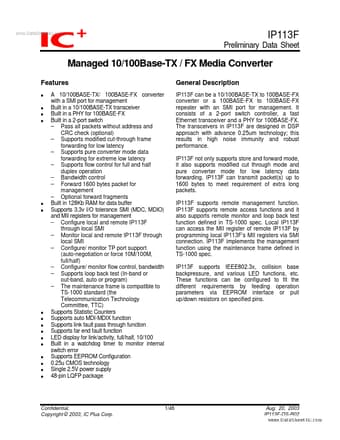

Preview of IP113F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP113F
Manufacturer
ICp
File Size
1.47 MB
Datasheet
IP113F_ICp.pdf
Description
Managed 10/100Base-TX / FX Media Converter
