IP117AHVSMD05 Datasheet, Regulator, TT

IP117AHVSMD05 Features

• Regulator
• 1.5A Output Current Guaranteed
• Internal Thermal Overload Protection
• Output Short Circuit Protected
• Hermetic Ceramic Surface Mount Package

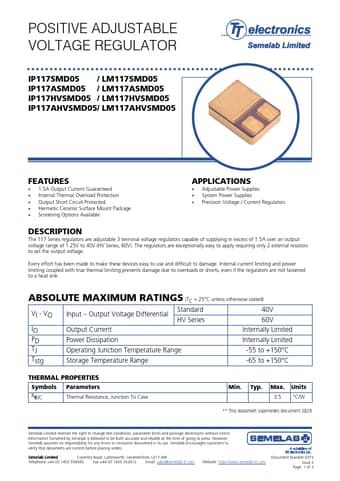

PDF File Details

Part number:

IP117AHVSMD05

Manufacturer:

TT

File Size:

403.60kb

Download:

📄 Datasheet

Description:

Positive adjustable voltage regulator. The 117 Series regulators are adjustable 3 terminal voltage regulators capable of supplying in excess of 1.5A over an output voltage

IP117AHVSMD05 Application

• Applications
• Adjustable Power Supplies
• System Power Supplies
• Precision Voltage / Current Regulators DESCRIPTION The 1
