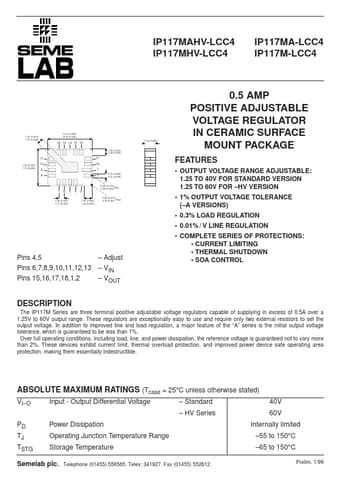

IP117MAHV-LCC4 Datasheet, Package, Seme LAB

IP117MAHV-LCC4 Features

• Package
• OUTPUT VOLTAGE RANGE ADJUSTABLE: 1.25 TO 40V FOR STANDARD VERSION 1.25 TO 60V FOR
    –HV VERSION
• 1% OUTPUT VOLTAGE TOLERANCE (
    –A VERSION

PDF File Details

Part number:

IP117MAHV-LCC4

Manufacturer:

Seme LAB

File Size:

18.66kb

Download:

📄 Datasheet

Description:

0.5 amp positive adjustable voltage regulator in ceramic surface mount package. The IP117M Series are three terminal positive adjustable voltage regulators capable of supplying in excess of 0.5A over a 1.25V to 60
