IP117 - 1.5 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR FOR HI-REL APPLICATIONS

Product Overview

Seme LAB

Part number	IP117
Manufacturer	Seme LAB
File Size	42.20 KB
Description	1.5 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR FOR HI-REL APPLICATIONS
Datasheet	IP117 Datasheet

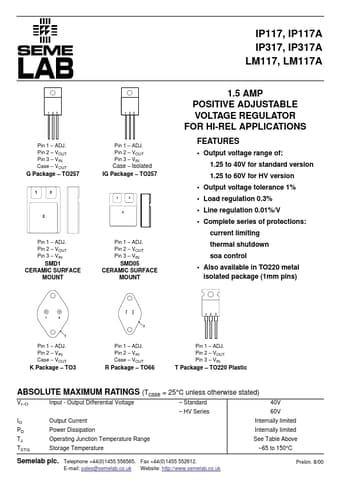

Additional preview pages of the IP117 datasheet.

Output voltage range of: 1.25 to 40V for standard version 1.25 to 60V for HV version.
Output voltage tolerance 1% ! ! 1 2 3 1 2 3 Pin 1.
ADJ. Pin 2.
VOUT Pin 3.
VIN Case.
VOUT Pin 1.
ADJ. Pin 2.
VOUT Pin 3.
VIN Case.
Isolated G Package.
TO257 IG Package.
TO257.
Load regulation 0.3%.
Line regulation 0.01%/V.
Complete series of protections: current limi.
