3022 Datasheet - ICS

3022 PC Board Mountable Accelerometer Millivolt Output Low Cost

The Model 3022 is a piezoresistive silicon accelerometer. The package is a ceramic substrate with a sealed ceramic cover. The ceramic provides an excellent bonding surface for the customers application specific adhesive. Each accelerometer includes a detailed calibration sheet, which provides test d.

3022 Features

* Designed for Adhesive Mounting

* ±0.5% Non-linearity (typical)

* ±1.0% Temperature Performance (with comp resistors-typical)

* DC Response

* Built-in Damping

* Built-in Over-range Stops

* Low Power

* Pins or No Pins STANDARD RANGES Ra

3022 Datasheet (179.86 KB)

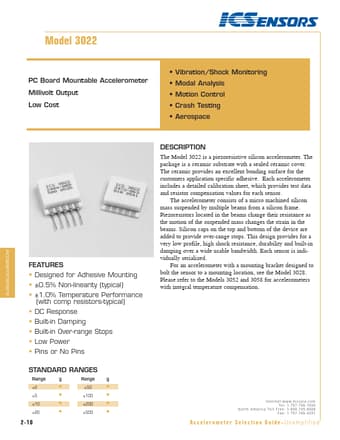

3022 Datasheet Preview — Preview of 3022 PDF

Datasheet Details

Part number:

3022

Manufacturer:

ICS

File Size:

179.86 KB

Description:

Pc board mountable accelerometer millivolt output low cost.
