302S41N101BF4E

Ceramic Capacitors

302S41N101BF4E Datasheet (284.78 KB)

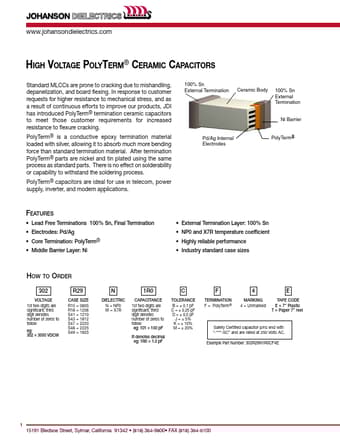

Preview of 302S41N101BF4E PDF Datasheet

Datasheet Details

Part number:

302S41N101BF4E

Manufacturer:

Johanson

File Size:

284.78 KB

Description:

Ceramic capacitors.
www.johansondielectrics.com High Voltage PolyTerm® Ceramic Capacitors Standard MLCCs are prone to cracking due to mishandling, depanelization, and bo.

302S41N101BF4E Features

* Lead Free Terminations 100% Sn, Final Termination

* Electrodes: Pd/Ag

* Core Termination: PolyTerm®

* Middle Barrier Layer: Ni

* External Termination Layer: 100% Sn http://www.DataSheet4U.net/

* NP0 and X7R temperature coefficient

* Hi

302S41N101BF4E General Description

The test board is designed so that the capacitance of the part can be measured while the part is being flexed (See figure 1). The capacitor is mounted at the center of the board. The testing equipment has a pressing block that is located so that it applies force at the center of the test board from .
