302S48Nxxxx Ceramic Capacitors

The test board is designed so that the capacitance of the part can be measured while the part is being flexed (See figure 1). The capacitor is mounted at the center of the board. The testing equipment has a pressing block that is located so that it applies force at the center of the test board from .

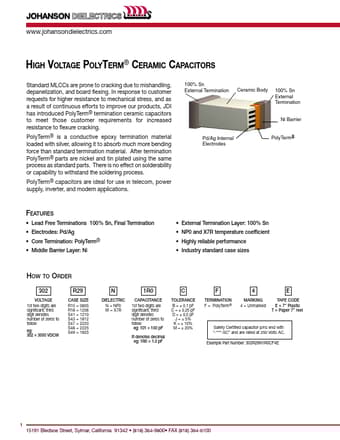

www.johansondielectrics.com High Voltage PolyTerm® Ceramic Capacitors Standard MLCCs are prone to cracking due to mishandling, depanelization, and board flexing. In response to customer requests for higher resistance to mechanical stress, and as a result of continuous efforts to improve our products, JDI has introduced PolyTerm® termination ceramic capacitors to meet those customer requirements for increased resistance to flexure cracking. PolyTerm® is a conductive epoxy termination material lo.

302S48Nxxxx Features

* Lead Free Terminations 100% Sn, Final Termination

* Electrodes: Pd/Ag

* Core Termination: PolyTerm®

* Middle Barrier Layer: Ni

* External Termination Layer: 100% Sn http://www.DataSheet4U.net/

* NP0 and X7R temperature coefficient

* Hi

302S41N101BF4E_Johanson.pdf

302S48Nxxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: 302S48Nxxxx, 302S41N101BF4E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

302S48Nxxxx, 302S41N101BF4E

Manufacturer:

Johanson

File Size:

284.78 KB

Description:

Ceramic capacitors.

Note:

This datasheet PDF includes multiple part numbers: 302S48Nxxxx, 302S41N101BF4E.
Please refer to the document for exact specifications by model.
