ICS43002I-41 FEMTOCLOCKS-TM VCXO BASED SONET/SDH JITTER ATTENUATOR

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS843002I-41 700MHZ, FEMTOCLOCKS™ VCXO BASED SONET/SDH JITTER ATTENUATOR .
The ICS843002I-41 is a member of the HiperClockS™ family of high performance clock HiPerClockS™ solutions from ICS.

📥 Download Datasheet

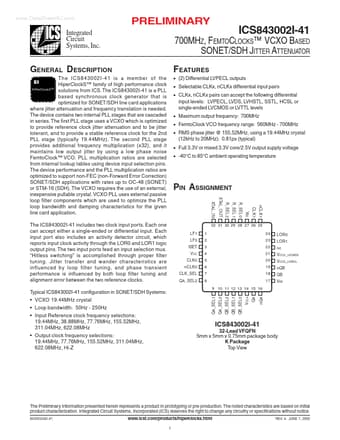

Preview of ICS43002I-41 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ICS43002I-41
Manufacturer
ICS
File Size
302.67 KB
Datasheet
ICS43002I-41_ICS.pdf
Description
FEMTOCLOCKS-TM VCXO BASED SONET/SDH JITTER ATTENUATOR

Features

* (2) Differential LVPECL outputs
* Selectable CLKx, nCLKx differential input pairs
* CLKx, nCLKx pairs can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL or single-ended LVCMOS or LVTTL levels
* Maximum output frequency: 700MHz

Applications

* where jitter attenuation and frequency translation is needed. The device contains two internal PLL stages that are cascaded in series. The first PLL stage uses a VCXO which is optimized to provide reference clock jitter attenuation and to be jitter tolerant, and to provide a stable reference clock f
