ICS44004I-04 Datasheet, Synthesizer, ICS

ICS44004I-04 Features

• Synthesizer
• Four LVDS outputs
• Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input
• Supports the following applications: SONET/SDH, SATA, or 10Gb

PDF File Details

Part number:

ICS44004I-04

Manufacturer:

ICS

File Size:

227.38kb

Download:

📄 Datasheet

Description:

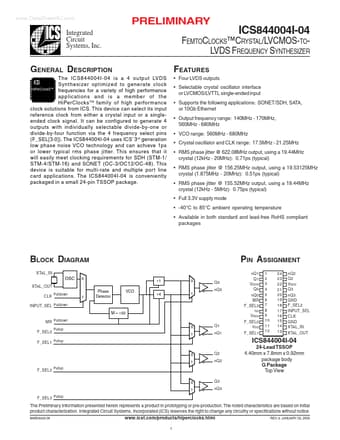

Crystal/lvcmos-to-lvds frequency synthesizer. The ICS844004I-04 is a 4 output LVDS Synthesizer optimized to generate clock HiPerClockS™ frequencies for a variety of high performan

ICS44004I-04 Application

• Applications SONET/SDH, SATA, or 10Gb Ethernet
• Output frequency range: 140MHz - 170MHz, 560MHz - 680MHz
• VCO range: 560MHz - 680
